Echograph 1055 B


Echograph 1055 B

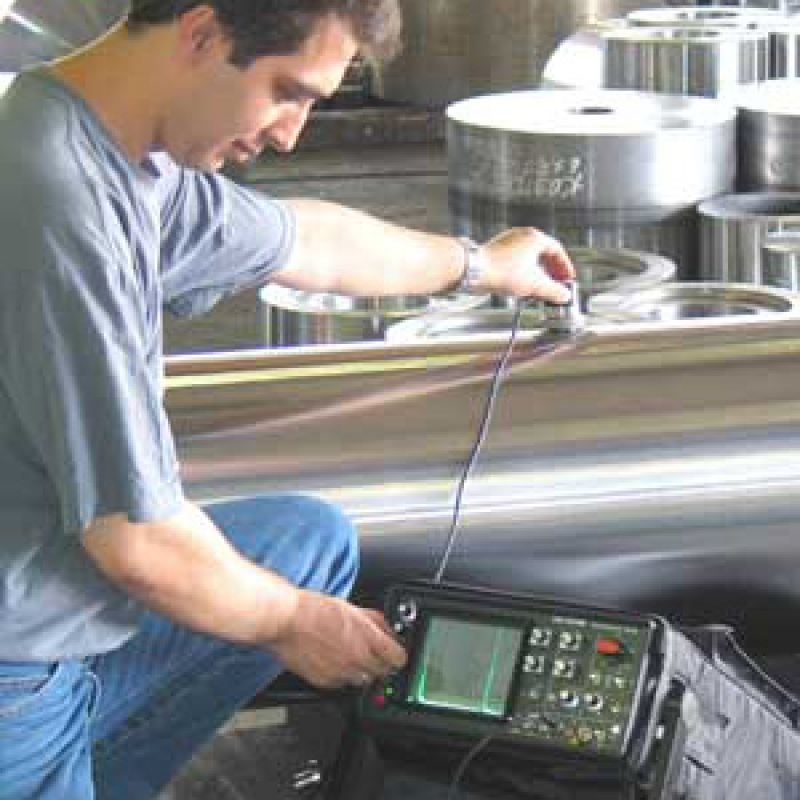

Large screen - optimized for the big forge....

Large screen
Infinitely variable pulse repetition rate: It is continuously selectable by means of a potentiometer on the front of the flaw detector; to avoid ghost echoes, even down to 20 Hz.

Matched frequency response: Optimum matching with the prescribed testing frequencies for forged parts. With this, it is possible to get a flat bottom hole (FBH) of 0.7 mm indicated within a machined diameter of up to 1200 mm, and an FBH of 1.0 mm within a workpiece of up to 2000 mm.

Optimized echo shape: The optimized echo shape ("neatly shaped" echo) permits a good recognizability and evaluation of the high-contrast echoes on the screen.

Five step measuring range switch for a quick adjustment upon the most important testing ranges.

Additional attenuation switch with the steps 1 dB, 6 dB, 12 dB, and 20 dB for a quick switch-over of the testing sensitivity.

NiMH batteries without memory effect, for an operating time of more than 10 hours.

Sturdy construction for hard in-situ application

Simple and clearly arranged control elements

Powder coated housing
