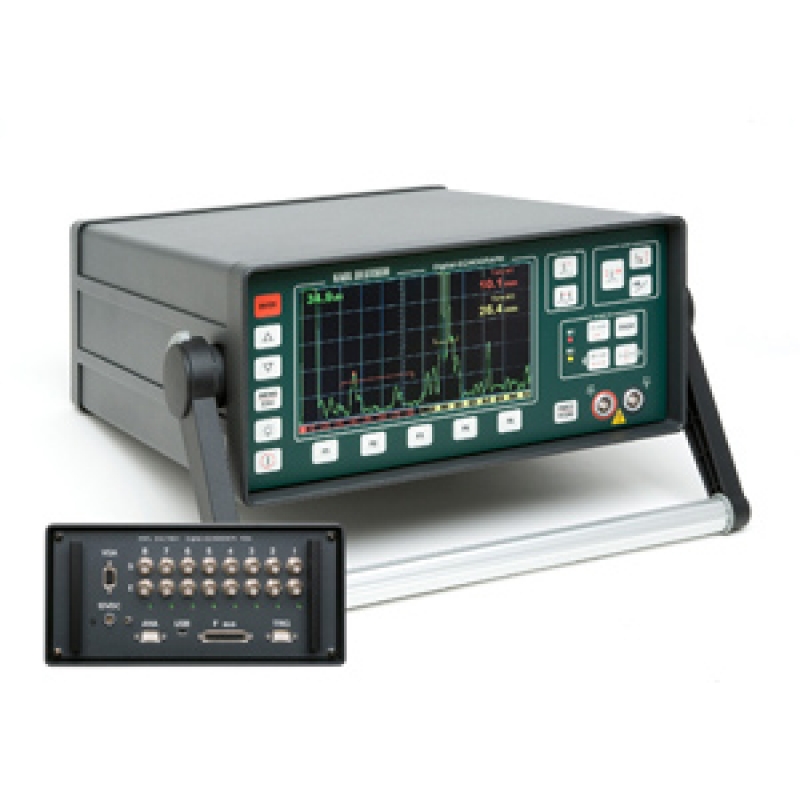

Portable 8-channel multiplex UT system..
Based on the technique and the ease of handling of the proven portable instrument ECHOGRAPH 1090 the ECHOGRAPH 1094 MUX now offers a mobile ultrasonic testing system for basic automated ultrasonic testing.
Delay time of the transmitter signals can be selected to up to 3800 ns individually for each test channel
Adaptation of the amplifier can be selected individually for each test channel from -11 dB to +11 dB
Compact aluminium case for harsh ambient conditions
Selectable colours for measuring and menu mode
Wizard for various instrument settings e.g. for determination of probe delay line, for adjustment of screen representation ...
A-scan usable as reference in the background
Freezable echo dynamics curve
Pulse repetition frequency: 8 Hz to 3000 Hz
Trigger: internal, external (input/output) and 1st echo
In compliance with EN 12668-1
